MAST RAKE (V3 HULL)

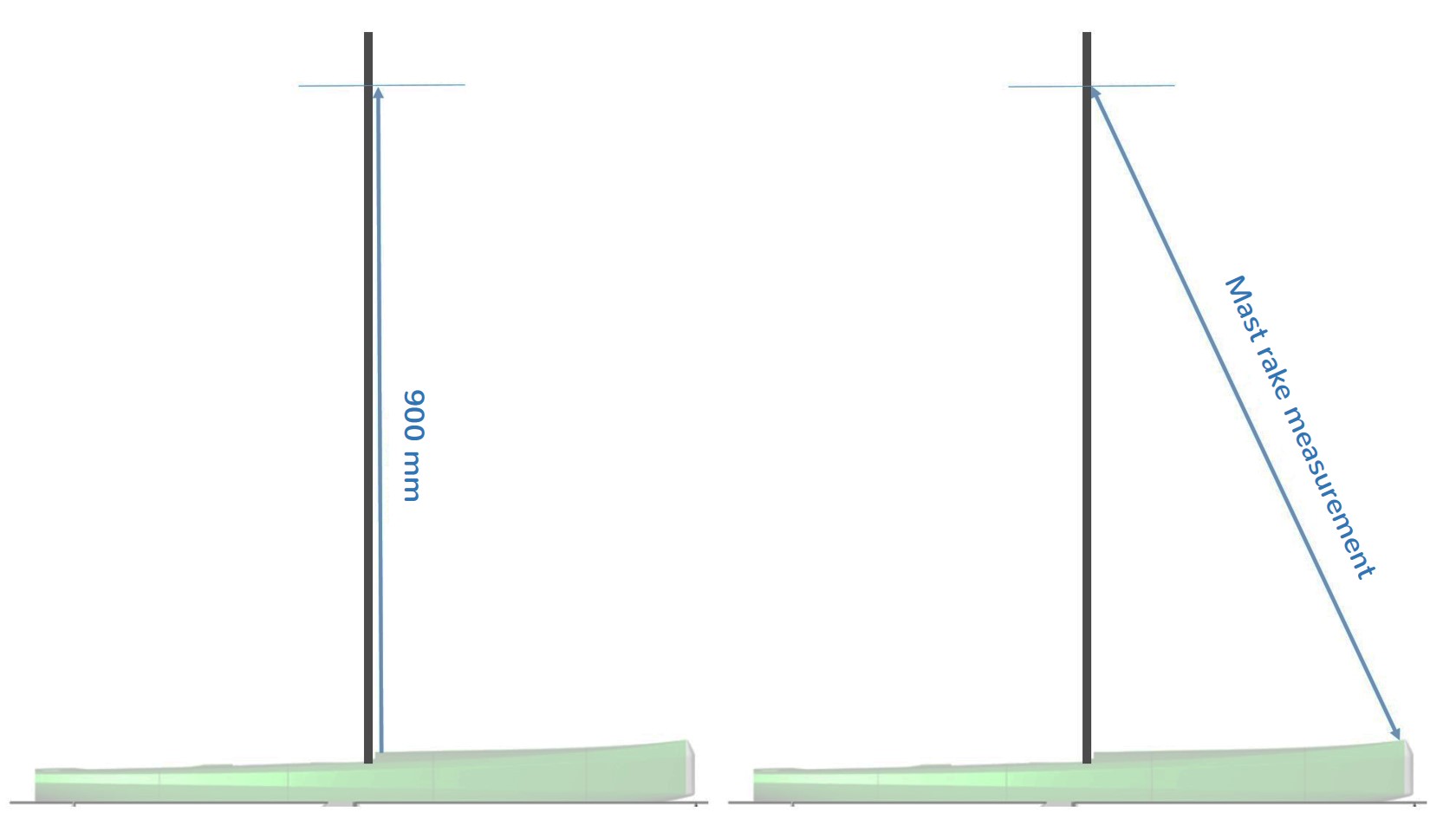

- Reference point. Height from mast ram support, 900 mm.
- Mast rake measurement. Diagonal from behind the bumper.
| ANGLE (degrees) | MEASUREMENT (mm) |
| 0.0 | 1006 |
| 0.5 | 1010 |
| 1.0 | 1014 |
| 1.5 | 1018 |
| 2.0 | 1023 |
| 2.5 | 1027 |
RECOMMENDED
A Rig, 1015 mm
B Rig, 1019 mm
C Rig, 1021 mm
MAST RIGGING DIAGRAM
